Louvres and Panels

Enviroblinds louvres and panels provide shading to reduce overheating from the sun, privacy and security whilst enhancing the building façade. Sliding, folding, lifting panels and louvres not only regulate temperature and light but also provide a unique and kinetic design feature.

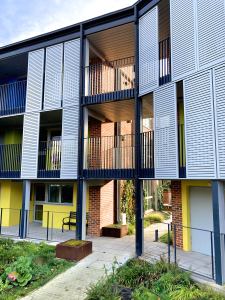

Sliding & Folding Panels

Sliding and folding panels are constructed with a 40 x 50mm aluminium frame as standard with an aluminium, wood or high-pressure laminate infill. A choice of solid, perforated or expanded metal mesh panels and wooden or aluminium louvres are available according to design, shading and wind load requirements.  Maximum dimensions to comply to EN 13659 class 6 wind resistance are 900 x 3000mm for the sliding panels and 600 x 3000mm for the folding panels.

Manual or motorized operation – panels can be operated manually by pushing them to the right or to the left where they can be locked in position or motorized using a tooth belt motor.

Easy to maintain dirt repellent screen fabrics are available in a wide choice of colours and specifications.

Folding panels

Key features

Lifting Panels

Lifting panels provide solar shading and privacy where space is limited to the left or right of a door or window, offering an unobstructed view through the glazing when fully retracted.  Extremely sleek and stylish in design with single panels of up to 3 metres wide for windows and 6 metres wide for doors and garage doors.

Lifting panels for windows are manufactured with a 50 x 50mm aluminium L frame for maximum dimensions of 3000 x 3000 mm.

Lifting panels for doors are manufactured with 100 x 100mm stainless steel L profiles for max dimensions of 3000 x 6000 mm.

Both types of lifting panels can be inlayed with different materials including aluminium or wooden slats, expanded metal sheets, aluminium or high pressure laminate.

Manual or motorized operation – panels can be operated manually by pushing them to the right or to the left where they can be locked in position or motorized using a tooth belt motor.



Key features
